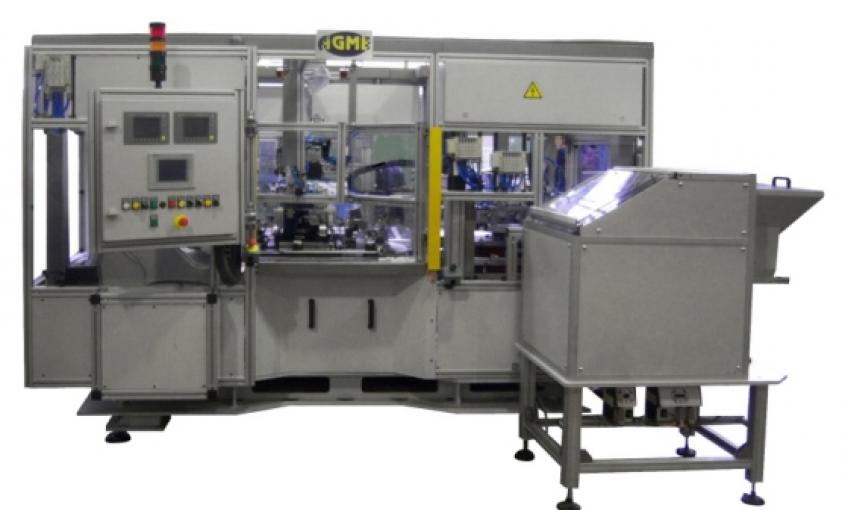

Electric window parts assembly rotary transfer

Lower track riveting machine Information

PROCESSES

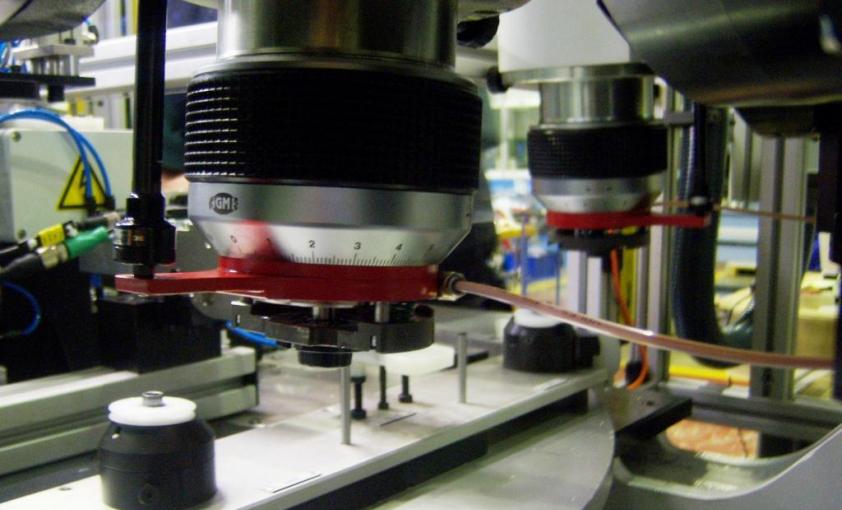

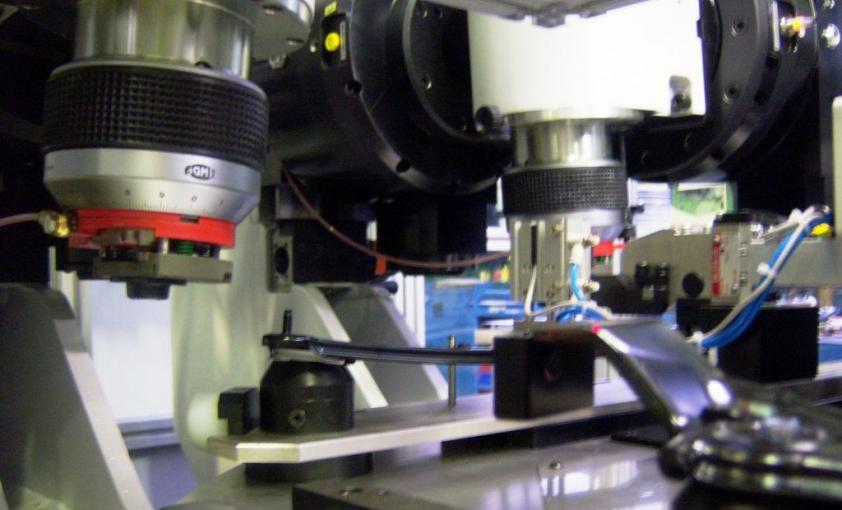

• Riveting of pins and pulleys on the electric windows rails
• Machine valid for different models

TECHNOLOGIES

• Dial transfer with 4 work stations
• Design and manufacture of special tooling and fixtures
• Automatic feeding of greased pins and pulleys subassemblies
• Integration of 2 controlled axles
• Pins riveting with CNC programmable angular movements
• Control unit and quality assurance system
• Automated unloading of the assembled components with OK / NOK parts selection

ADVANTAGES

• When controlling the 2 axles, the vertical riveting axes can be modified to make it possible any angle
• Process control that guarantees the final quality of the sub-assemblies
• One single machine to perform different processes when assembling the electric windows rails
• Compact machine that does not require much space in the site
• Flexible machine capable of processing different models
